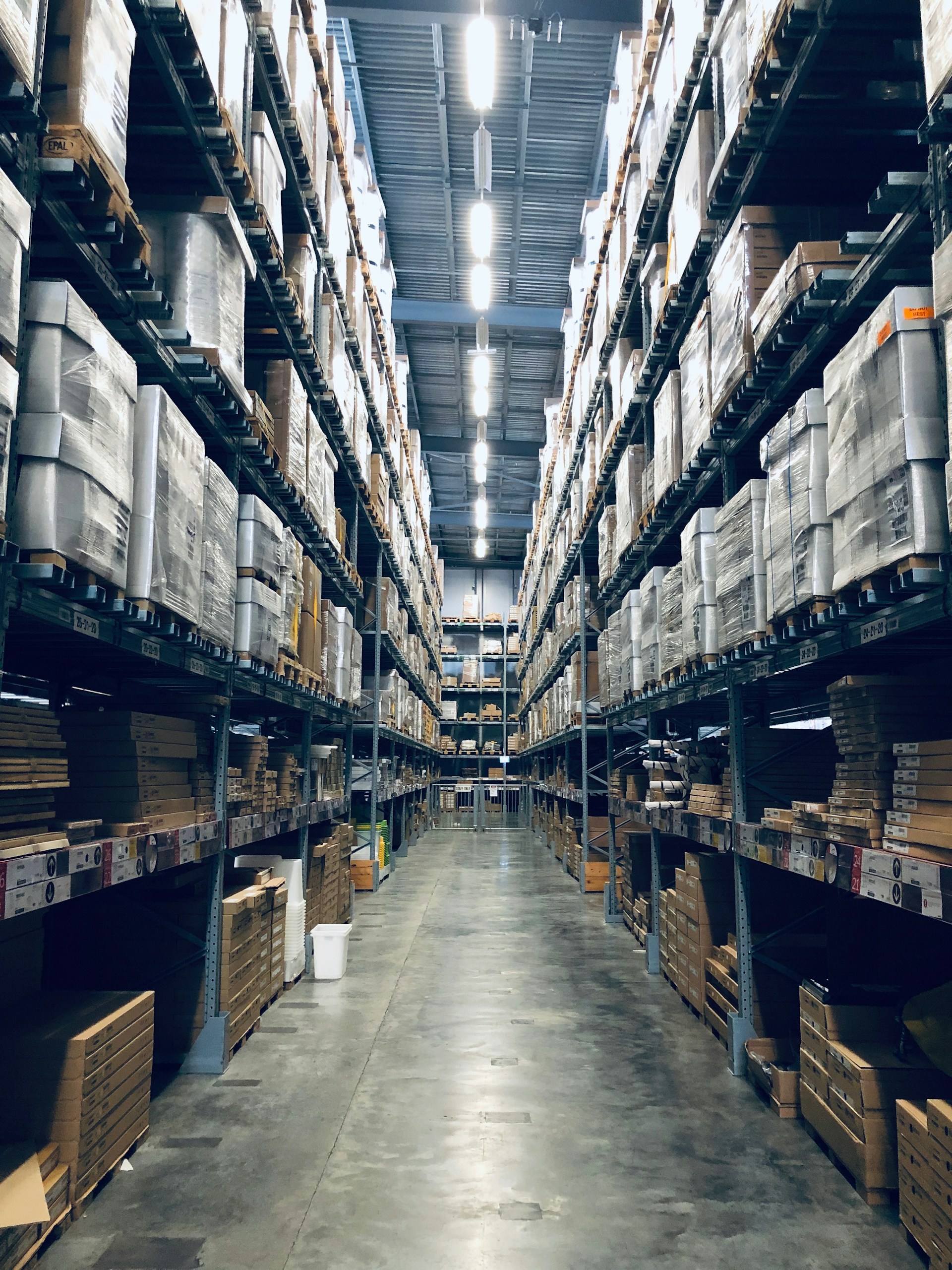

High bay LED fixtures are the workhorses of commercial lighting. They illuminate warehouses, manufacturing floors, distribution centers, gymnasiums, and big-box retail spaces — anywhere ceiling heights exceed 15 feet. The market for these fixtures has matured: efficacy above 160 lm/W is now common, prices have dropped 40% since 2022, and DLC Premium-listed options qualify for utility rebates in virtually every North American market.

But buying the right fixture is only half the job. Poor installation decisions — wrong wattage for the ceiling height, incorrect beam angles, under-programmed occupancy sensors, and wiring errors — routinely undermine the energy savings and lighting quality that high bay LEDs are supposed to deliver.

This guide covers the complete installation picture for commercial buyers in 2026.


Step 1: Selecting the Right Wattage for Your Ceiling Height

The most common mistake commercial buyers make is selecting high bay wattage based on what they are replacing rather than what the space actually needs. Replacing a 400W metal halide fixture with a 150W LED is not a formula — it is a starting point that may be completely wrong for your ceiling height and target footcandles.

The Ceiling Height Rule

High bay fixtures are classified by mounting height:

| Ceiling Height | Fixture Category | Recommended LED Wattage | |---|---|---| | 15–20 ft | Low Bay / High Bay | 80–150W | | 20–30 ft | High Bay | 150–200W | | 30–40 ft | High Bay | 200–300W | | 40 ft+ | Very High Bay | 300–480W |

These ranges assume a target of 30–50 footcandles (fc) — the [Illuminating Engineering Society (IES)](https://www.ies.org/) recommended range for general warehouse and storage tasks. For fine assembly, quality control, or order-picking areas, target 50–75 fc and size up accordingly.

The 30-Foot Ceiling Example

For a 30-foot ceiling with a target of 30 fc and fixtures spaced 15 feet apart in a grid pattern, the calculation works as follows:

• - Required lumens per fixture: approximately 20,000–25,000 lm (based on spacing-to-height ratio and utilization factor)
• - At 160 lm/W efficacy (standard DLC Premium): 125–156W per fixture
• - Recommended selection: 150W with a 90° beam angle

Undersizing — say, choosing a 100W fixture — produces approximately 20 fc at floor level, which fails IES minimums for active warehouse use and creates safety and productivity issues. Oversizing to 200W wastes energy and can cause glare if fixtures lack proper optics.

How to Verify: Use a Lighting Layout Tool

Before ordering in bulk, run a photometric layout. Free tools from manufacturers like Cree, Lithonia, and Eaton's Ephesus division can generate point-by-point footcandle calculations for your floor plan. The [U.S. Department of Energy's Better Buildings program](https://betterbuildingssolutioncenter.energy.gov/) also provides free lighting audit resources and calculators.

For bulk buyers, requesting a photometric layout is standard practice — any reputable commercial LED distributor will provide one at no charge for orders above 20 fixtures.

Step 2: Beam Angle Selection — Why It Matters More Than Wattage

A 150W high bay with a 60° beam and a 150W high bay with a 120° beam illuminate completely different areas at the same mounting height. Yet beam angle is routinely overlooked when buyers focus on wattage and lumen output alone.

Beam Angle by Application

| Application | Recommended Beam Angle | Why | |---|---|---| | High-rack storage (30+ ft) | 60–90° | Concentrates light in the aisle between racks | | Open warehouse floor | 90–120° | Broader spread reduces fixture count | | Manufacturing / assembly | 90° | Balance of intensity and spread for task lighting | | Gymnasium / sports | 60° narrow + perimeter fill | Prevents glare toward players and spectators |

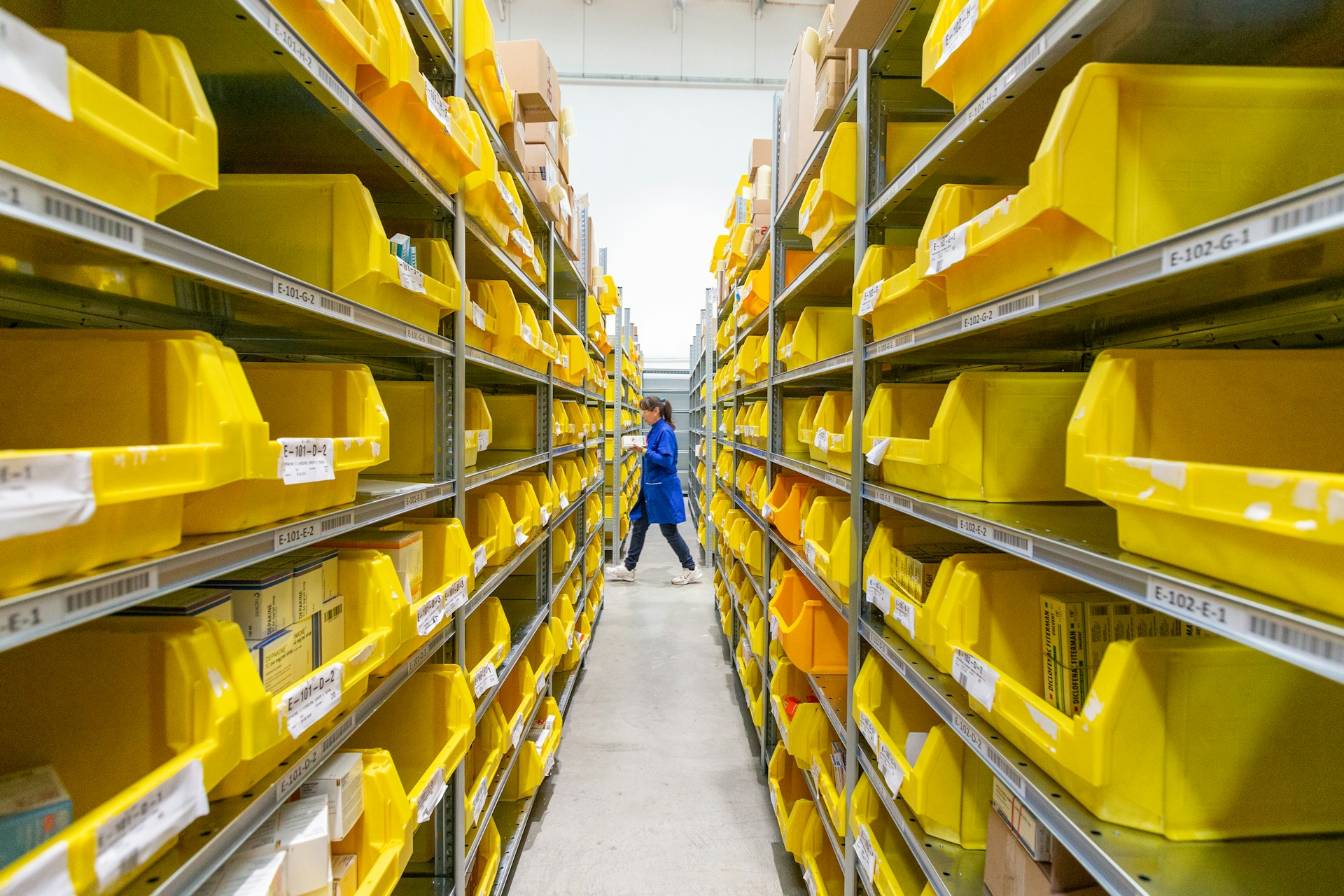

Using a 120° beam at 30 feet on a narrow warehouse aisle wastes most of the light on rack faces and walls rather than the floor where workers operate. The same fixture with a 60° beam delivers 40–50% higher footcandles at floor level in the aisle — with no increase in wattage.


Step 3: The Six Most Common High Bay Installation Mistakes

Mistake 1: Ignoring Spacing-to-Height Ratio

Every high bay fixture has a rated spacing-to-height (S/H) ratio — typically 1.0–1.5 for commercial round high bays. If your mounting height is 25 feet and your fixture has an S/H ratio of 1.2, maximum fixture spacing is 30 feet (25 × 1.2).

Spacing fixtures farther apart than the S/H ratio allows creates dark zones between fixtures — a common audit finding in older retrofits where buyers simply replaced fixtures in existing socket locations without recalculating spacing requirements.

Mistake 2: Incorrect Mounting Hardware for the Structure

High bay fixtures weigh 8–25 lbs each, and in industrial environments they are exposed to vibration from forklifts, HVAC systems, and machinery. Using standard ceiling hooks or lightweight aircraft cable without proper safety cables is both a code violation and a liability risk.

Requirements under the [National Electrical Code (NEC) Article 410](https://www.nfpa.org/codes-and-standards/nfpa-70): - All luminaires over 6 lbs must be supported independently of the outlet box - Safety cables rated to support 3× the fixture weight are required in most commercial jurisdictions - In seismic zones, additional bracing per IBC standards applies

Always use manufacturer-specified mounting hardware. For v-hook or pendant-mount fixtures, stainless steel swivel hooks rated for the fixture weight plus a 50% safety margin are the minimum standard.

Mistake 3: Skipping Neutral Wire for 0-10V Dimming

Many commercial buyers purchase 0-10V dimmable high bay fixtures — the standard dimming protocol for commercial LED — without confirming that their existing circuit wiring includes a neutral conductor at each fixture location.

0-10V dimming requires four wires at the fixture: line (hot), neutral, ground, and the two 0-10V control wires. Facilities wired for non-dimmable HID fixtures frequently have only three conductors (line, neutral, ground) run to each fixture location — which works fine for non-dimming LED but cannot support 0-10V control without adding a neutral, which may require pulling new wire.

Verify wiring before purchasing dimmable fixtures. If rewiring is cost-prohibitive, consider DALI-2 dimmable fixtures that operate on two-wire control, or wireless control options like Casambi or nLight that require no additional low-voltage wiring.

Mistake 4: Mixing High Bay Wattages on the Same Circuit Without Load Calculation

Commercial facilities frequently have circuits originally sized for 400W metal halide fixtures. A 150W LED replacement draws significantly less current, which seems like a purely positive change. But when multiple fixture wattages are mixed on a single circuit — common during phased retrofits — circuit load calculations need to be rerun.

The [NEC requires circuits to operate at no more than 80% of rated capacity](https://www.nfpa.org/codes-and-standards/nfpa-70) continuously. For a 20A/120V circuit (2,400W capacity, 1,920W continuous limit), mixing twelve 150W LEDs (1,800W) is within limits, but adding one 200W fixture tips the circuit to 1,950W — a code violation. Always run load calculations before adding fixtures to existing circuits.

Mistake 5: Mounting Angle Errors on Linear High Bays

Linear high bay fixtures — increasingly common in warehouses replacing round UFO-style high bays — are directional. The long axis of the fixture should run perpendicular to the aisle or work area, not parallel. Parallel mounting concentrates light along the aisle rather than across it, creating a bright strip along the floor centerline and dark zones near rack faces and walls.

Mistake 6: Not Commissioning Occupancy Sensors Before Final Mounting

This is the costliest mistake in terms of rework labor. Occupancy sensors on high bay fixtures have adjustable coverage radius, time-delay settings, and daylight harvest sensitivity. These settings must be confirmed to work correctly before fixtures are raised to their final mounting height.

At 30 feet, reconfiguring an incorrectly set sensor requires a scissor lift or aerial work platform — adding $200–400 per fixture in labor compared to commissioning at floor level before mounting.

Step 4: Wiring LED High Bays with Occupancy Sensors

Occupancy sensors dramatically improve the ROI of high bay LED installations. The [DOE estimates](https://www.energy.gov/eere/ssl/solid-state-lighting) that occupancy-controlled high bays in warehouses save an additional 30–50% on lighting energy compared to on/off switching alone — on top of the 50–70% savings from the LED retrofit itself.

Wiring Topology Options

Line-voltage occupancy switch (simplest): The sensor acts as a line-voltage switch. When motion is detected, full power flows to the fixture. When the space is vacant, power is cut. This works with any LED high bay but provides only on/off control — no dimming.

0-10V dimming with occupancy override (recommended): The sensor sends a 0-10V signal to the driver, allowing the fixture to dim to a standby level (typically 10–20%) rather than switching off completely. This eliminates the warm-up delay issue (LED high bays have negligible warm-up time, but sudden on/off switching in active facilities can startle workers) and extends driver lifespan by reducing switching cycles.

Networked sensor control (enterprise standard): Wireless or wired sensor networks (nLight, Lutron Vive, Enlighted) allow zone-based occupancy control, real-time energy monitoring, and integration with building management systems. For facilities over 50,000 sq ft, the energy monitoring data alone typically justifies the additional investment.

Sensor Placement Rules

• - Mount sensors at 60–70% of fixture mounting height when using separate sensor fixtures — for 30-foot ceilings, mount sensors at 18–21 feet
• - For integrated sensor/fixture combos (most common in 2026), ensure the sensor field of view is not obstructed by structural elements, ductwork, or racking
• - Overlap sensor coverage zones by 10–15% to eliminate dead zones — gaps between sensor coverage areas appear as dark zones when one zone is occupied and adjacent zones have dimmed or switched off

Time-Delay Configuration

The default factory setting on most commercial high bay sensors is 5–15 minutes. For warehouses with intermittent occupancy (pickers who move quickly between zones), set time delay to 2–5 minutes to capture maximum energy savings. For manufacturing lines with continuous occupancy, 15–30 minutes is appropriate to prevent disruptive switching during brief pauses in activity.

For facilities pursuing utility rebates, confirm sensor time-delay settings meet your rebate program's requirements — some programs require specific minimum time-delay settings as a condition of incentive eligibility. See our guide to [commercial LED lighting rebates and incentives](/blog/commercial-led-lighting-rebates-incentives-2026) for a full breakdown by region.

Calculating Your ROI Before You Buy

Getting the installation right pays dividends across the fixture's 10+ year service life. A typical warehouse high bay LED installation ROI calculation should include:

| Factor | Impact | |---|---| | Energy reduction (LED vs. HID) | 50–70% kWh savings | | Occupancy sensor savings | Additional 30–50% on sensor-controlled zones | | Utility rebates (DLC Premium) | $15–50 per fixture in most US/Canada markets | | Maintenance elimination (no lamp changes) | $8–15 per fixture per year in labor savings | | Cooling load reduction | 15–25% HVAC savings in climate-controlled facilities |

For a 100-fixture warehouse at $0.12/kWh, a properly installed high bay LED system with occupancy control typically delivers a payback period of 18–36 months — and 8–12 years of net savings thereafter.

For a detailed cost modeling framework, see our breakdown of [LED retrofit vs. full fixture replacement costs in 2026](/blog/led-retrofit-vs-full-replacement-cost-2026) and our [commercial LED brand comparison for Cree, OSRAM, and Philips](/blog/cree-osram-philips-led-brand-comparison-commercial) when evaluating which fixture line to spec.

FAQ

What wattage high bay LED do I need for a 30-foot ceiling warehouse? For a 30-foot mounting height targeting 30–50 footcandles — the IES recommended range for active warehouse use — a 150–200W LED high bay with a 90° beam angle is the appropriate range. The exact wattage depends on fixture spacing and aisle width. Request a photometric layout from your distributor to verify before bulk ordering.

What are the most common mistakes when installing high bay LEDs? The six most common commercial high bay installation mistakes are: incorrect wattage for ceiling height, ignoring spacing-to-height ratio (creating dark zones), using inadequate mounting hardware for the fixture weight, skipping neutral wire for 0-10V dimming circuits, mixing wattages on circuits without recalculating load, and failing to commission occupancy sensors before raising fixtures to final mounting height.

How do I wire high bay LEDs with occupancy sensors? The recommended approach is 0-10V dimming with occupancy override: the sensor dims the fixture to 10–20% in unoccupied zones rather than switching off completely. This requires a 0-10V dimmable driver, a 0-10V-compatible sensor, and four conductors at the fixture (line, neutral, ground, plus two 0-10V control wires). For simpler installations, line-voltage occupancy switches provide on/off control with no additional control wiring.

How far apart should high bay LED fixtures be spaced? Fixture spacing is determined by the spacing-to-height (S/H) ratio listed in the fixture's photometric data — typically 1.0–1.5 for commercial round high bays. At a 25-foot mounting height with an S/H ratio of 1.2, maximum spacing is 30 feet. Exceeding this creates dark zones between fixtures. Always verify S/H ratio in the fixture's IES photometric file, not just the marketing spec sheet.

Do high bay LED fixtures qualify for utility rebates? Yes — virtually all DLC Premium-listed high bay LED fixtures qualify for utility rebates in the US and Canada. Rebate amounts typically range from $15–50 per fixture depending on wattage and the utility program. Occupancy sensor controls often qualify for additional incentives. Verify eligibility on the [DesignLights Consortium QPL](https://www.designlights.org/search/) using your specific fixture SKU before purchasing.
